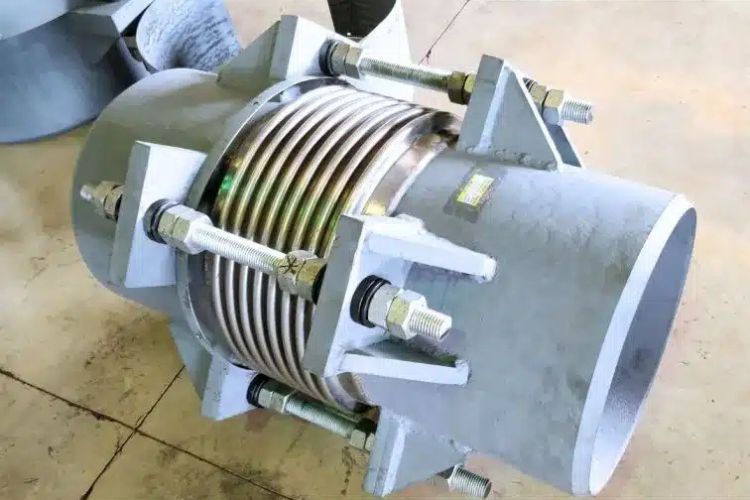

Every high-pressure pipeline tells a story of heat, force, vibration, corrosion, and sometimes, unexpected system failures. And at the center of this story sits one critical component: the axial expansion joint. For industries relying on safe movement absorption, choosing the right material isn’t optional; it’s survival. It’s also a question every major axial expansion joint manufacturer in India must help engineers answer with precision.
Why Material Selection Shapes System Performance?
High-pressure systems behave a bit like a pressurized vessel dancing under load hot, stressed, and always shifting. Axial expansion joints reduce this stress, but only if their material matches the actual operating environment.
As noted in reports from Energy.gov, industrial systems operating under fluctuating temperature and pressure conditions experience significantly higher failure rates when unsuitable materials are used. That makes metallurgy one of the most decisive engineering choices in pipeline design.
The Engineering Logic Behind Material Selection
Selecting materials for axial expansion joints is a balancing act involving temperature, chemical composition, pressure cycles, and fatigue resistance. Below is a systematic breakdown to guide practical decision-making.
1. Temperature Handling Capacity
Different alloys behave differently under heat. Stainless steel grades like SS304 or SS316 are great for standard steam and water lines, while nickel-based alloys dominate extreme-temperature environments.
- SS304/316: Works for mid-range temperature applications
- Inconel 625: A champion alloy for high-heat, high-pressure zones
- Hastelloy C-276: Preferred when temperature meets corrosive chemicals
2. Pressure, Load Cycles & Fatigue
High-pressure lines exert multi-directional forces. Axial joints here must handle repeated stress cycles. Materials like duplex steel or Inconel provide the tensile strength required for these demanding environments.
3. Corrosion Resistance
Corrosion is the quiet saboteur of pipeline systems. Chemical plants, desalination units, and refineries often face aggressive fluids, making corrosion-resistant alloys essential rather than optional.
4. Interaction with Anchors & Guides
Material selection doesn’t happen in isolation. Load paths, anchoring systems, and pipe guides collectively influence stress distribution. This connects directly to insights from The Role of Pipe Guides and Anchors in a Healthy System, which explains how improper guiding can overstress even the strongest alloy.
Industry-Approved Materials for High-Pressure Axial Expansion Joints
Let’s highlight the materials most commonly used by engineers and manufacturers for high-pressure applications. These options dominate because they strike a balance between cost, strength, and long-term reliability.
Stainless Steel Grades
Stainless steel remains the industry’s most trusted and accessible solution. SS304 is the economical choice, whereas SS316 is preferred for applications with chlorides or mild chemicals.
Nickel-Based Alloys
When nothing less than high-performance metallurgy will do, nickel alloys step in.
- Inconel 600/625: Superb performance in heat-intensive environments
- Monel 400: Ideal for saltwater and marine systems
- Hastelloy C-276: A top choice for chemical processing systems
Duplex & Super Duplex Steels
Industries dealing with high chloride concentrations, offshore pressure, and aggressive media often depend on duplex steel because of its powerful mix of strength and corrosion resistance.
Why Many System Failures Trace Back to Poor Material Choices?
Even the most perfectly designed system can collapse if the material of the expansion joint can’t handle real-world conditions. Here’s where an experienced axial expansion joint manufacturer becomes indispensable.
- Mismatching materials to the chemical environment
- Ignoring pressure cycle data when selecting thickness
- Overlooking temperature fluctuations that impact fatigue life
Brands like Flexpert Bellows Pvt Ltd emphasize detailed system audits before recommending material grades, a step that saves industries from premature failures, costly shutdowns, and safety risks.
Industries That Depend Heavily on the Right Metallurgy
Additional SEO-friendly keywords like pipeline flexibility, high-pressure systems, and thermal expansion control speak directly to sectors using these components intensively.
- Oil & Gas: Extreme pressure and corrosive fluids require premium alloys
- Power Generation: High thermal cycles push materials to their limit
- Chemical Processing: Demands unmatched corrosion resistance
FAQs
1. Which material is best for high-pressure axial expansion joints?
Nickel alloys like Inconel or Hastelloy are ideal for extreme pressure and temperature conditions due to their high strength and corrosion resistance.
2. Can stainless steel be used in high-pressure environments?
Yes. SS304 and SS316 are suitable for moderate pressure and temperature ranges, but harsher environments may require stronger alloys like duplex or Inconel.
3. How does corrosion impact expansion joint life?
Corrosion reduces structural strength, flexibility, and fatigue resistance, leading to premature failure of the expansion joint.
4. Do anchoring and guiding systems affect material choice?
Absolutely. Poor guiding increases stress on joints, making material selection even more critical to long-term performance.
Final Thoughts
Choosing the right material isn’t just a design step it’s a safeguard for the entire system. With the right alloy and expert consultation, high-pressure pipelines achieve long service life, higher reliability, and better safety. Material science isn’t glamorous, but it’s the backbone of sustainable industrial operations.
